The FW962 Horn Strobe and FW982 Strobe are a family of multi-candela visual and/or audible signal appliances with light sources generated from white Light Emitting Diodes (LEDs), listed according to UL 1971, UL 1638, UL 464, ULC-S525, and ULC-S526 for indoor use.
The LED light source offers superior performance, including low power consumption and long operating life. Five levels of light output are selectable.
| Operating Voltage | 16 to 33 VDC | |||||
|---|---|---|---|---|---|---|
| Operating Current @24VDC (mA, RMS) | 130cd | 105cd | 85cd | 50cd | 35cd | 20cd |
| FW962 | 125 | 105 | 70 | 48 | 37 | |
| 130cd | 105cd | 85cd | 50cd | 35cd | 20cd | |
| Sound Level (dBA) | 85.6 at Reverberant | |||||
| 97.2 Anechoic | ||||||

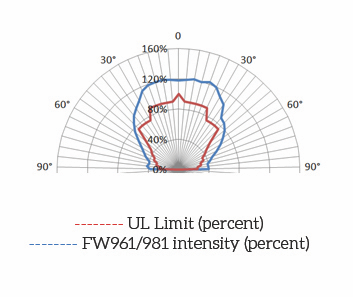

| Effective Light (cd) | 160, 30, 110, 70, 50, 30 | |||||
| Operating Temperature | 0° Cto49° C (32° Fto120° F) | |||||
| Operating Humidity | 0to93% RH | |||||
| Horn Pattern | Temporal3 | |||||
| Strobe Pattern | 1 flash per second | |||||
| Wire Size | 12to18 AWG | |||||
| Location | Indoor walls | |||||
| Compatible Model | FW951 Sync Module, FW106 FACP | |||||
